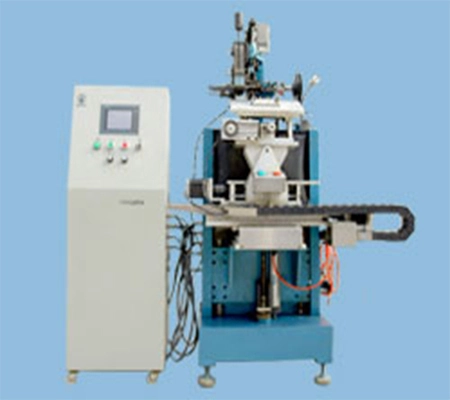

5-Axis 3-Head Brush Drilling and Tufting Machine WXD-5A3H01

For this cylinder brush machine, the working voltage should be stable, around AC380±10V; over-voltage will probably cause the ruin of electronics.

Price:

EXW, FOB, CIF, CFR

Payment:

T/T, L/C

Package:

Wooden case

Model:

WXD-5A3H01

Minimum:

1 Set

Delivery:

45 Days

Country:

Guangzhou, China

BrandName:

Wanxinda

Inquiry

Write a Review

Features of 5-Axis 3-Head Brush Drilling and Tufting Machine WXD-5A3H01:

1) With two drilling heads and a tufting head, this 5-axis 3-head brush machine is used to make cylindrical brushes, toilet brushes, roller brushes, fan-shaped brooms, scrubbing brushes, vacuum brushes, and other brushes with non-standard shape

2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

3) With PLC(Programmable Logic Controller), which operates precisely with excellent stability.

4) The working table of this cylindrical brush machine is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

5) Operator enters data for drilling/tufting positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

Technical Parameter for 5-Axis 3-Head Brush Drilling and Tufting Machine WXD-5A3H01:

Standard Working Area of Working Table	X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized)
Material of Brush Handle	Plastic, wood; with flat, corrugated or fan-shaped surface, or roller-type, or with non-standard shape
Material of Brush Filaments	PP, nylon, copper wire, stainless steel wire, bristle
Length of Filaments (Outside Holes)	8mm - 120mm
Diameter of Brush Filaments	0.08mm - 1.2mm
Diameter of Holes	3mm - 6mm
Colors of Filaments	Either single color or two colors
Maximum Tufting Speed	5 holes per second
Specifications of Machine Body	1.5m x 1.5m x 1.4m
Motor (Power System)	With step-motor by default; also we could use servo-motor instead, if required by clients.
Data Input for Drilling/Tufting Positions	Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
Touchable Screen	With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 84 programs for making different brushes.
Gross Weight	Around 600KGS
Programming	PLC (Programmable Logic Controller)
Power Supply	3-phase 380V, or single-phase 220V, 50-60Hz, 1000W
Replaceable Clamp	FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
Tufting Mode	Either "flat wire" or "staple"
Packing	Wood cases
