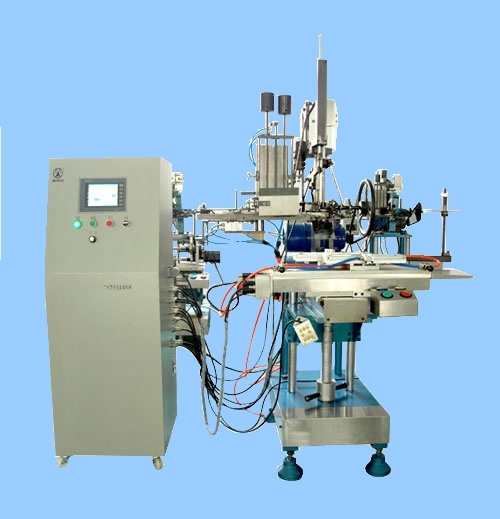

3-Axis Brush Drilling Machine WXD-3A-005 1
3-Axis Brush Drilling Machine WXD-3A-005 1

3-Axis Brush Drilling Machine WXD-3A-005

This machine has functions of both drilling and tufting. With drilling head installed, it drills holes; replacing the drilling head with tufting head, it then tufts. It operates in the mode of four-location circumrotating. Only one-time installation is ne

    oops...!

    no product data.

    Go to homepage
    3-Axis Brush Drilling Machine WXD-3A-005 2

    Features of 3-Axis Brush Drilling Machine WXD-3A-005:


    1) This 3-axis CNC brush drilling machine is used to drill holes for various kinds of brushes with flat-surface, including plastic/wooden brushes, toilet brushes and some other industrial brushes.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), this 3-axis CNC brush drilling machine operates precisely with excellent stability.

    4) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Two clamps are installed on working table, which work alternatively and continually. Thus there's no need to stop to change brush handles, which increases productivity. It can drill holes for different kinds of brushes, as long as operator changes clamps.

    6) Operator enters data for drilling positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.

    7) This machine has functions of both drilling and tufting. With drilling head installed, it drills holes; replacing the drilling head with tufting head, it then tufts. It operates in the mode of four-location circumrotating. Only one-time installation is needed for either drilling or tufting, with features of precise positioning and high efficiency.

    Technical Parameter for 3-Axis Brush Drilling Machine WXD-3A-005:

    Standard Working Area of Working Table  X-axis x Y-axis x Z-axis = 350mm x 180mm x 360°
    (Other size could be customized)
     Material of Brush Handles  Plastic, wood
     Diameter of Holes  1mm - 10mm
     Maximum Drilling Speed  6 holes per second
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Programming  PLC (Programmable Logic Controller)
     Touchable Screen  With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Data Input for Drilling Positions                              Teaching-type: Operator manually puts tufting head into each hole, one by one, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Gross Weight  Around 250KGS
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Packing  It'll be packed in wooden case.
    Wooden case for machine body: 1000mm x 1200mm x 1600mm
    Wooden case for computer box: 600mm x 600mm x 1400mm
