3-Axis 2-Head Drilling Machine WXD-3A2H03 1
3-Axis 2-Head Drilling Machine WXD-3A2H03 1

3-Axis 2-Head Drilling Machine WXD-3A2H03

With two drilling heads, this machine is used to drill holes for various kinds of brushes with curved or flat surface, including plastic/wooden hairbrushes, toilet brushes and some other industrial brushes.

    oops...!

    no product data.

    Go to homepage
    Pls click here to see how it drills holes for wooden/plastic hairbrushes, on video.

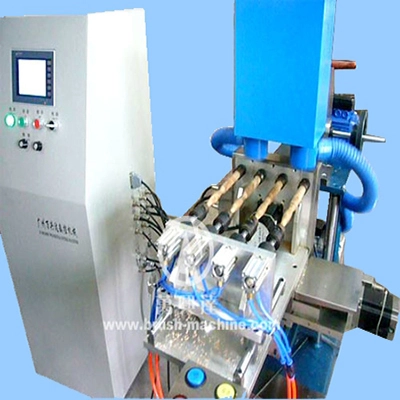

    3-axis 2-head hairbrush drilling machine

    Features of 3-Axis 2-Head Drilling Machine WXD-3A2H03:

    1) This 3-axis CNC brush drilling machine is used to drill holes for cylindrical brushes, or brushes with either curved or flat surface, including plastic/wooden hairbrushes, roller brushes and some other small industrial brushes.

    2) With 5.4'' touchable screen, the interface is available in various languages, such as Chinese, English, Spain, Russian, etc, as required by clients.

    3) With PLC(Programmable Logic Controller), this 3-axis CNC brush drilling machine operates precisely with excellent stability.

    4) The working table is composed of straight-line guide rail and ball screw with high precision, which is quite stable and durable.

    5) Four clamps(grippers) are installed on working table, which work alternatively and continually, thus there is no need to stop to change hairbrush handles, which increases productivity. Also it can drill holes for other kinds of brushes, as long as operator changes clamps(grippers).

    6) Operator enters data for drilling positions by either "Teaching-Type" or "Digits-Type". On operation interface, operator could insert, delete, adjust, copy, separate and move holes, which is quite simple and convenient.


    Technical Parameter for 3-Axis 2-Head Drilling Machine WXD-3A2H03:

    Standard Working Area of Working Table  X-axis x Y-axis x Z-axis = 350mm x 180mm x 360°
    (Other size could be customized)
     Material of Brush Handles  Plastic, wood
     Diameter of Holes  1mm - 10mm
     Maximum Drilling Speed  6 holes per second
     Qty of Programs Saved  It saves totally 84 programs for making different brushes.
     Specifications of Machine Body  1.5m x 1.5m x 1.4m
     Motor (Power System)  With step-motor by default; also we could use servo-motor instead, if required by clients.
     Programming  PLC (Programmable Logic Controller)
     Touchable Screen  With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy.
     Speed Adjusting  Frequency-conversion stepless-adjustable speed
     Data Input for Drilling Positions                              Teaching-type: Operator manually puts drilling head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for drilling position has been entered and saved.

    Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position.
     Gross Weight  Around 250KGS
     Power Supply  3-phase 380V, or single-phase 220V, 50-60Hz, 600W
     Replaceable Clamp  FMS type. Operator could make other kinds of brushes, as long as he changes clamps.
     Packing  It'll be packed in wooden case.
    Wooden case for machine body: 1000mm x 1200mm x 1600mm
    Wooden case for computer box: 600mm x 600mm x 1400mm
